Quick Details

  • Place of Origin: Seoul, South Korea
  • Brand Name: LG
  • Model Number: 18650
  • Type: INR
  • Nominal Voltage: 3.7V
  • Size: 18mm*65mm
  • Nominal Capacity: 3000mah
  • Nominal Capacity:: 3000mah
  • weight:: 50g
  • certification:: ce/rohs
  • design::: lithium/li-ion battery
  • button top:: yes, Flat top: ok
  • Warranty:: 6 months
  • usage:: e-cig, mod, flashlight
  • OEM/ODM:: welcome

Packaging & Delivery

Packaging Details: standard export packing
Delivery Detail: 3-5days

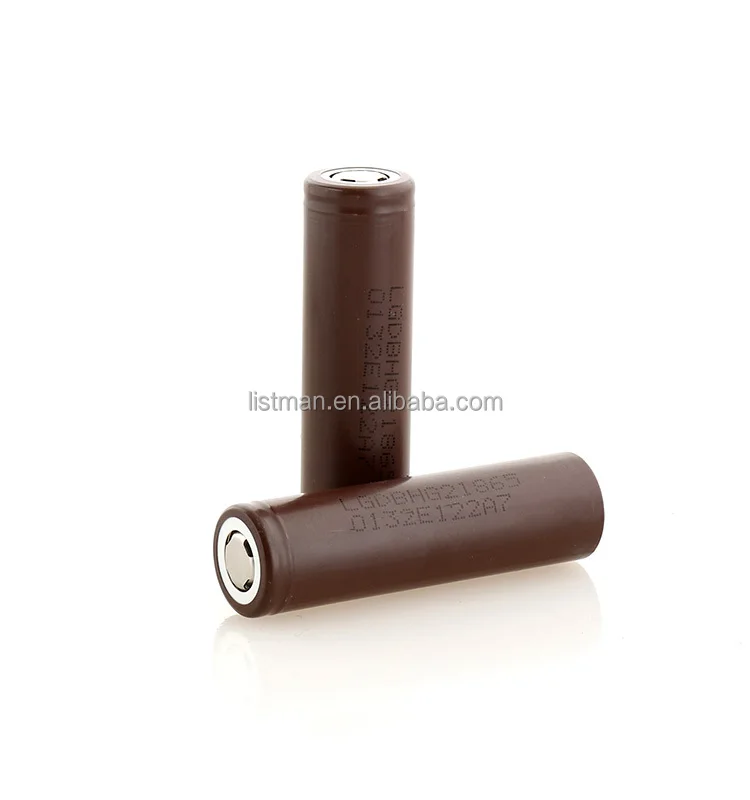

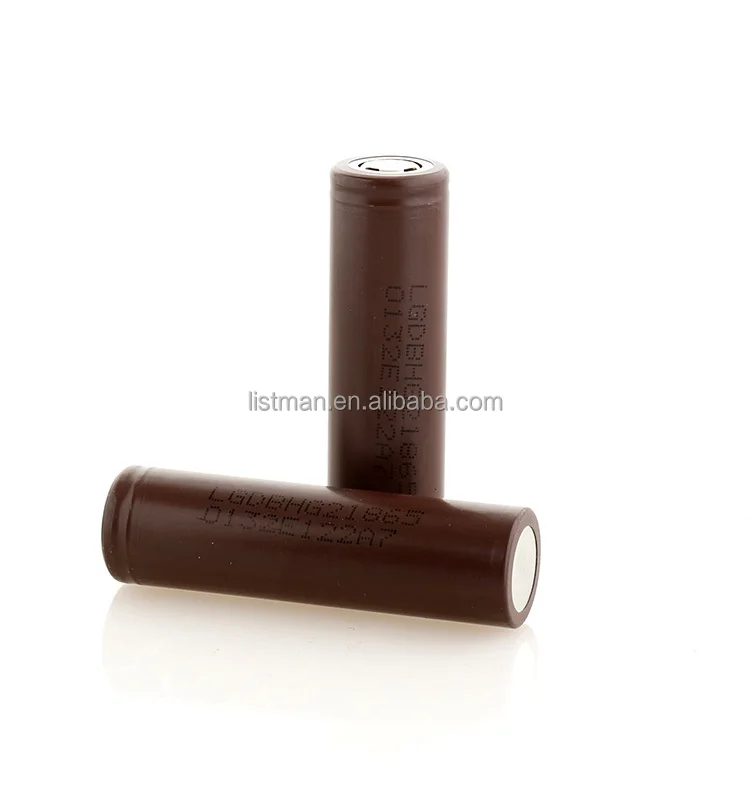

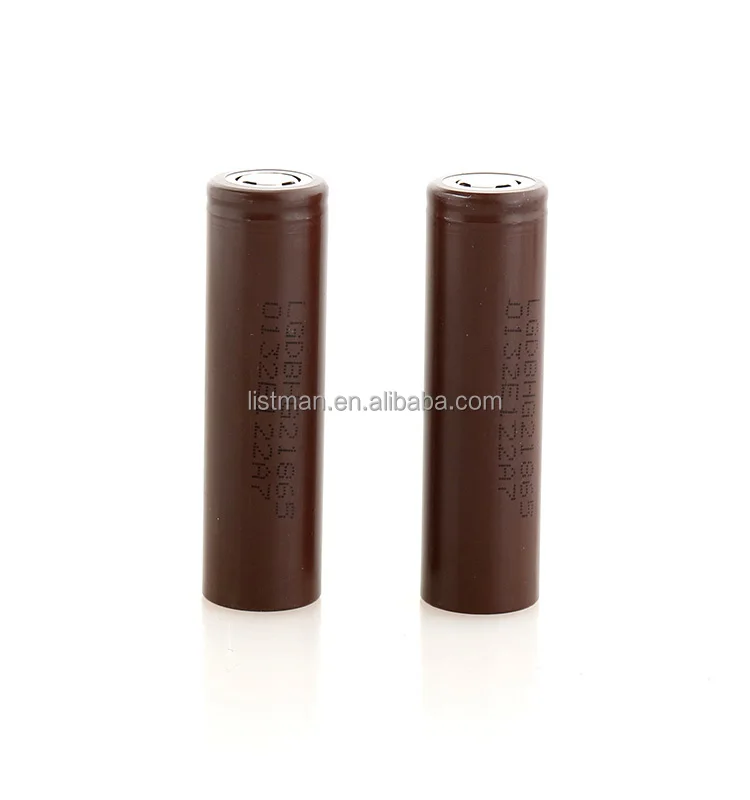

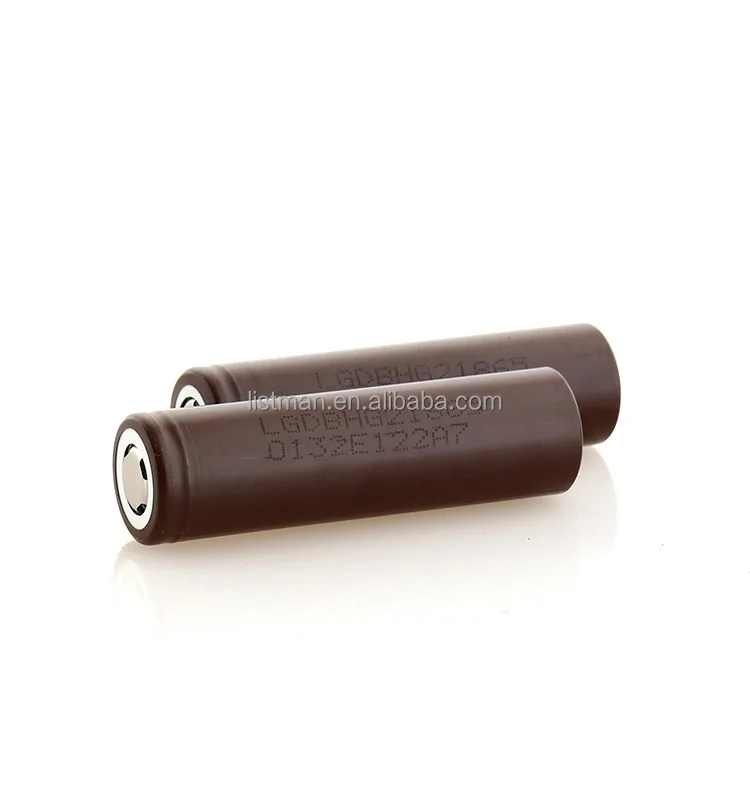

2015 best selling high amp 18650 battery cells LG HG2 3000mah 35amp better than VTC5





Skype: ping.sunny29





ItemCondition / NoteSpecification
CapacityStd. charge / discharge

3000mAh

Nominal VoltageAverage of Std. Discharge3.60V
Standard Charge

Constant current

1500mA



Constant voltage

4.20V
End current(Cut off)50mA
Fast ChargeConstant current4000mA
Constant voltage4.20V
End current(Cut off)100mA
Max. Charge Voltage4.20V±0.05V
Max. Charge Current 4000mA
Standard Discharge

Constant current

End voltage(Cut off)

600mA

2.5V

Fast Discharge



Constant current



End voltage(Cut off)



10000mA, 20000mA

2.5V

Max. Discharge CurrentFor continuous discharge20000mA
WeightApprox.Max. 47.0G
Operating Temperature

Charge

Discharge

0 ~ 50°C

-20~ 75°C

Storage Temperature

1 month

3 months

1 year

-20 ~ 60°C

-20 ~45°C

-20 ~ 20°C

Dimension


(D) 18.3 + 0.2/-0.3 mm

(H) 65.0 ± 0.2 mm



Features



The latest model from LG Chem.

Compared with HE4 and 25R, it is with higher capacity under the same continuous discharge.

High performance

Light weight, small size and high performance

Small internal resistance

Outstanding Discharge properties and Storage Capacity

Pollution free, long cycle life

No memory effect

Existing stock for short delivery time.

Factory price, high quality





Cautions



1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 50°C.
6. Battery must be discharged at operating temperature range -20 ~ 75C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.
